TC EXU Dash Wiring

George Arbor

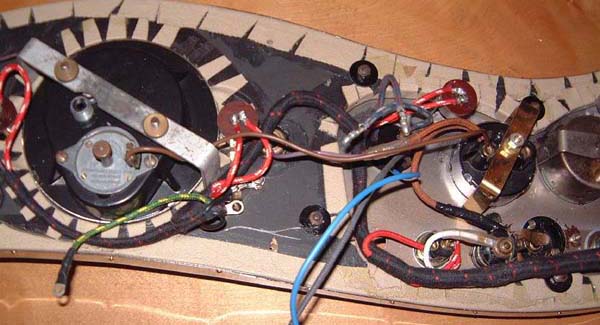

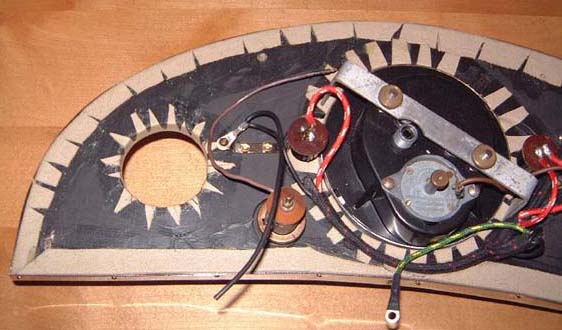

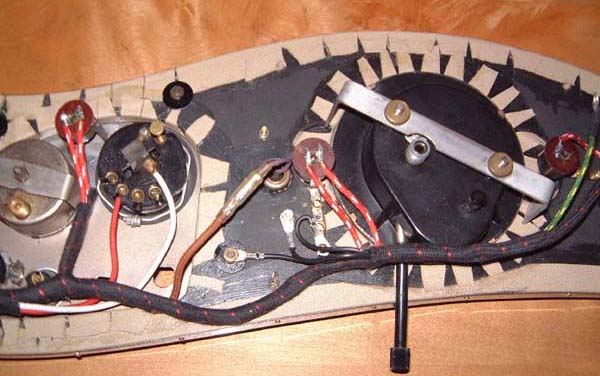

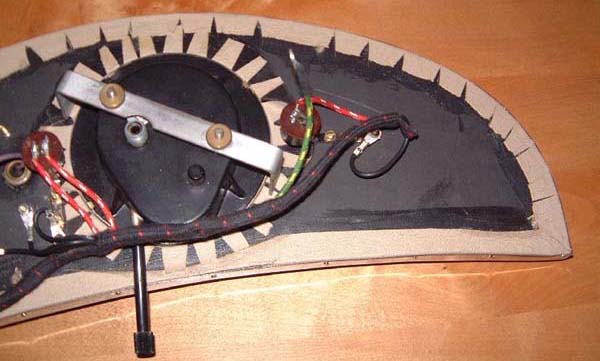

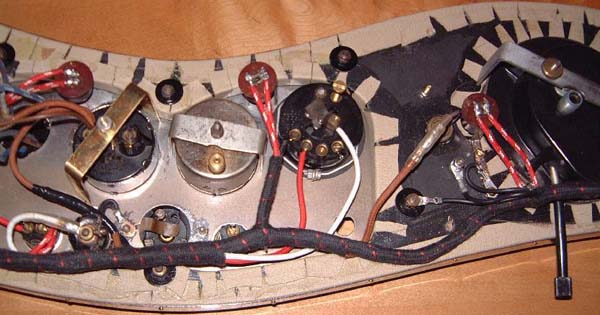

There are five photo's of the dash wiring (EXU) which together make up the complete view of the dash wiring loom and connections that I have made. My email has generated a fair amount of interest and there is no doubt that the pictures would serve the group better if they were available on the group's website.

Other connections were made on fitting the dash to the car. The EXU has two flasher relays fitted under the scuttle and connections have yet to be made to the dash indicator switch.
