TC Heatshield

Peter Pleitner

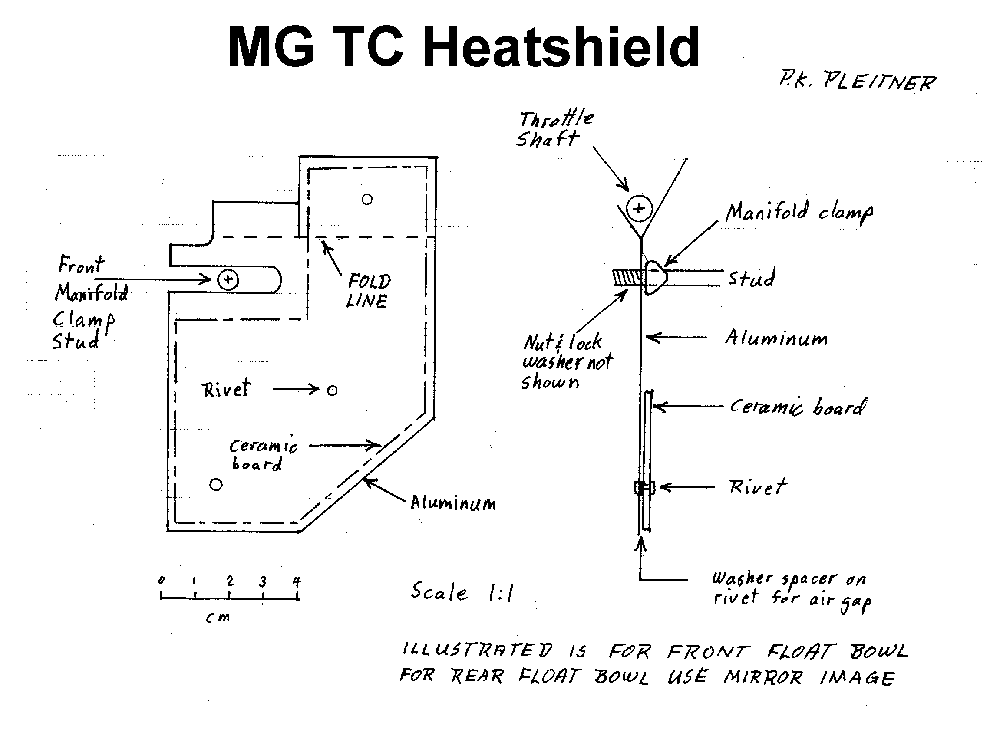

I though I should also submit this drawing for our web page's technical articles. The drawing should be self explanatory without text. This design has worked very well for me to virtually eliminate modern fuel vaporization problems when starting my engine when hot. The additional benefit is that they are barely visible, thus preserving most of the original appearance.
